登录案例
# 需求

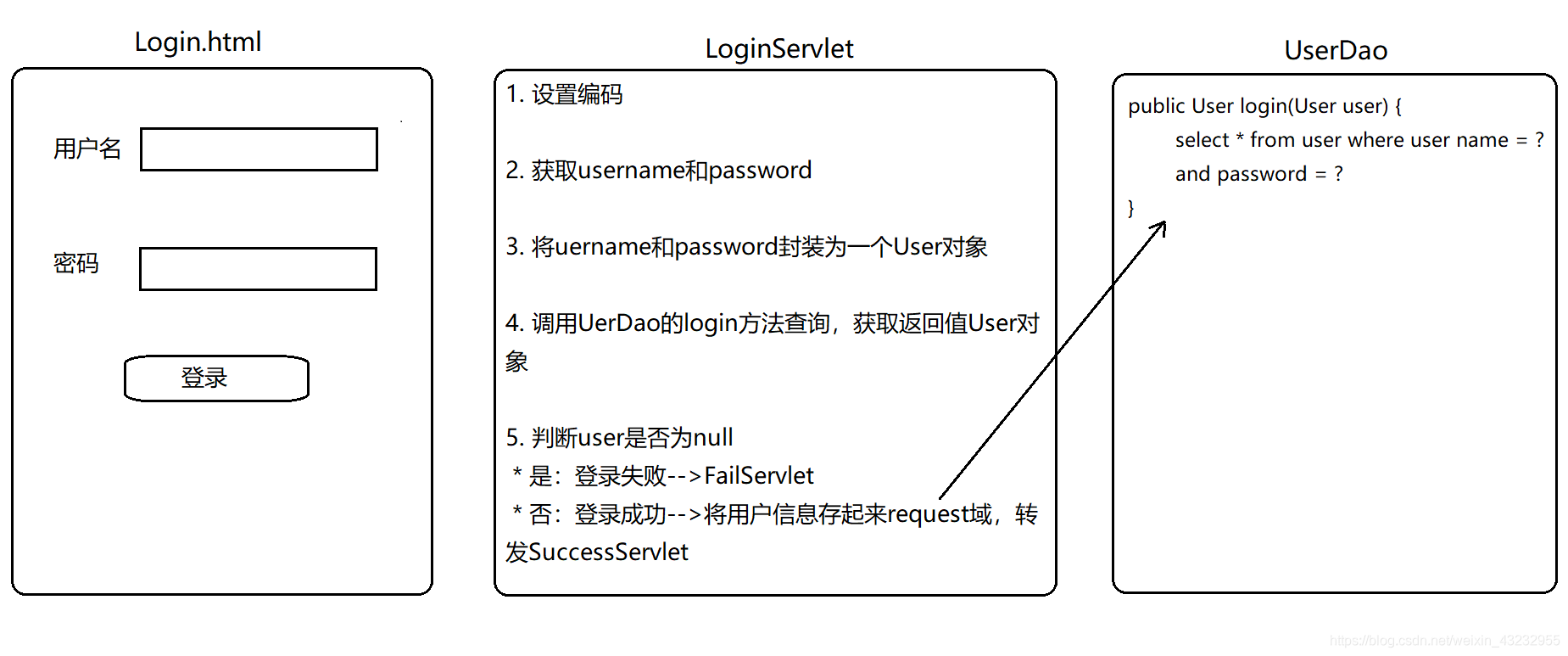

用户登录案例需求:
编写login.html登录页面username&password 两个输入框
使用Druid数据库连接池技术,操作mysql,LoginDemo数据库中user表
使用dbcTemplate技术封装 JDBC
登录成功跳转到Successservlet展示:登录成功!用户名,欢迎您
登录失败跳转到Failservlet展示:登录失败,用户名或密码错误
# 开发步骤
# 1.创建项目,导入html页面,配置文件,jar包

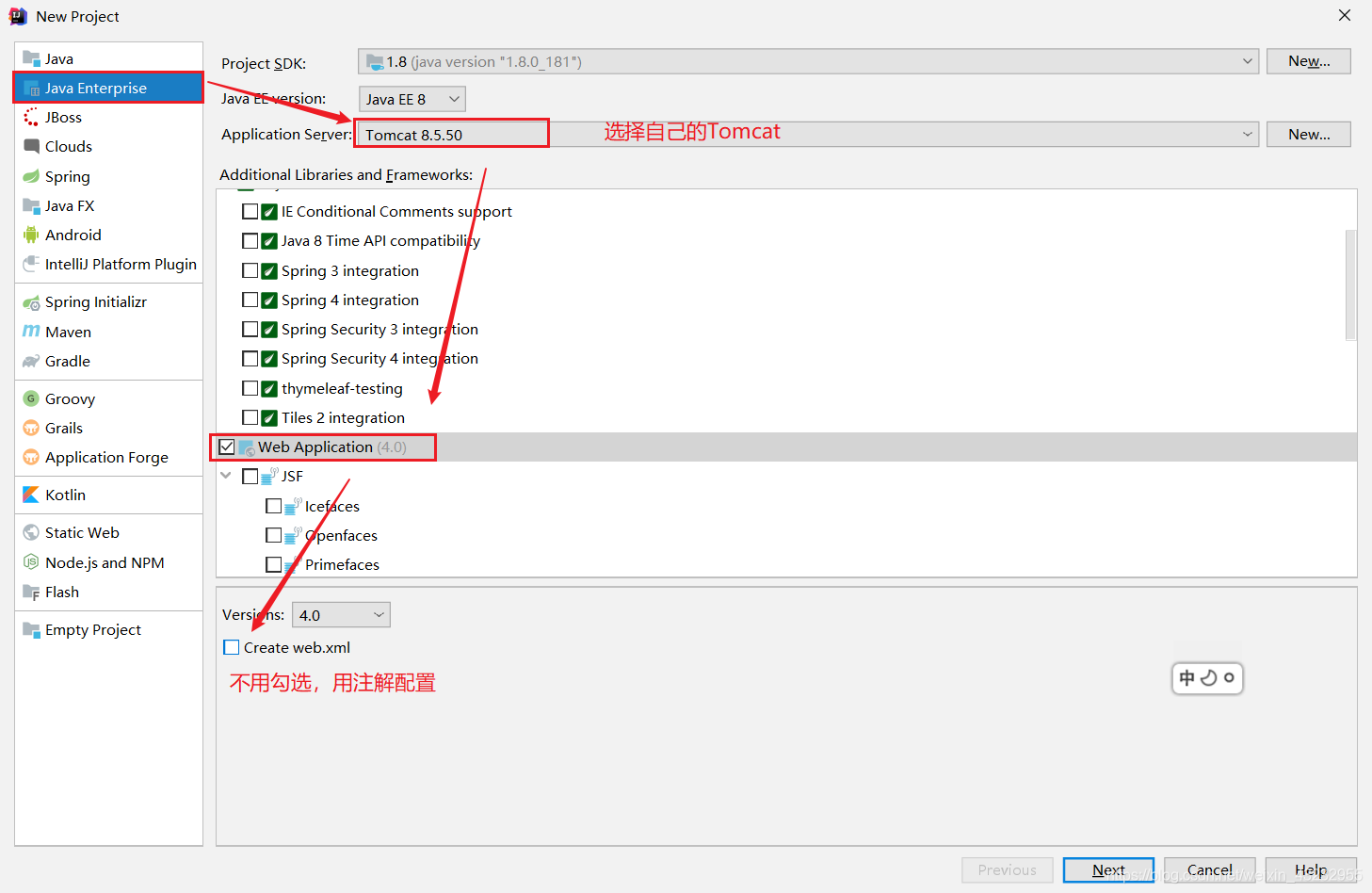

File -----> New -----> Project
# 2.创建数据库环境,导入jar包
CREATE DATABASE day14;
USE day14;
CREATE TABLE USER(
id INT PRIMARY KEY AUTO_INCREMENT,
username VARCHAR (32) UNIQUE NOT NULL,
password VARCHAR (32) NOT NULL
);
2
3
4
5
6
7
8
9
- 在表中插入数据
username | password |
---|---|
admin | admin |

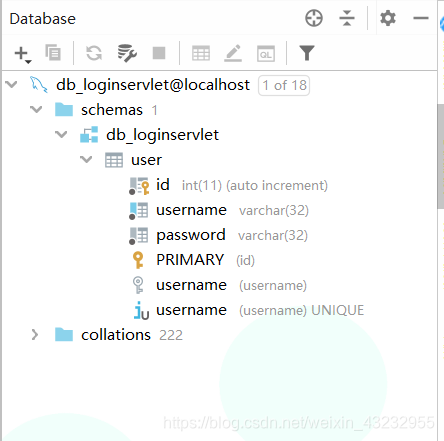

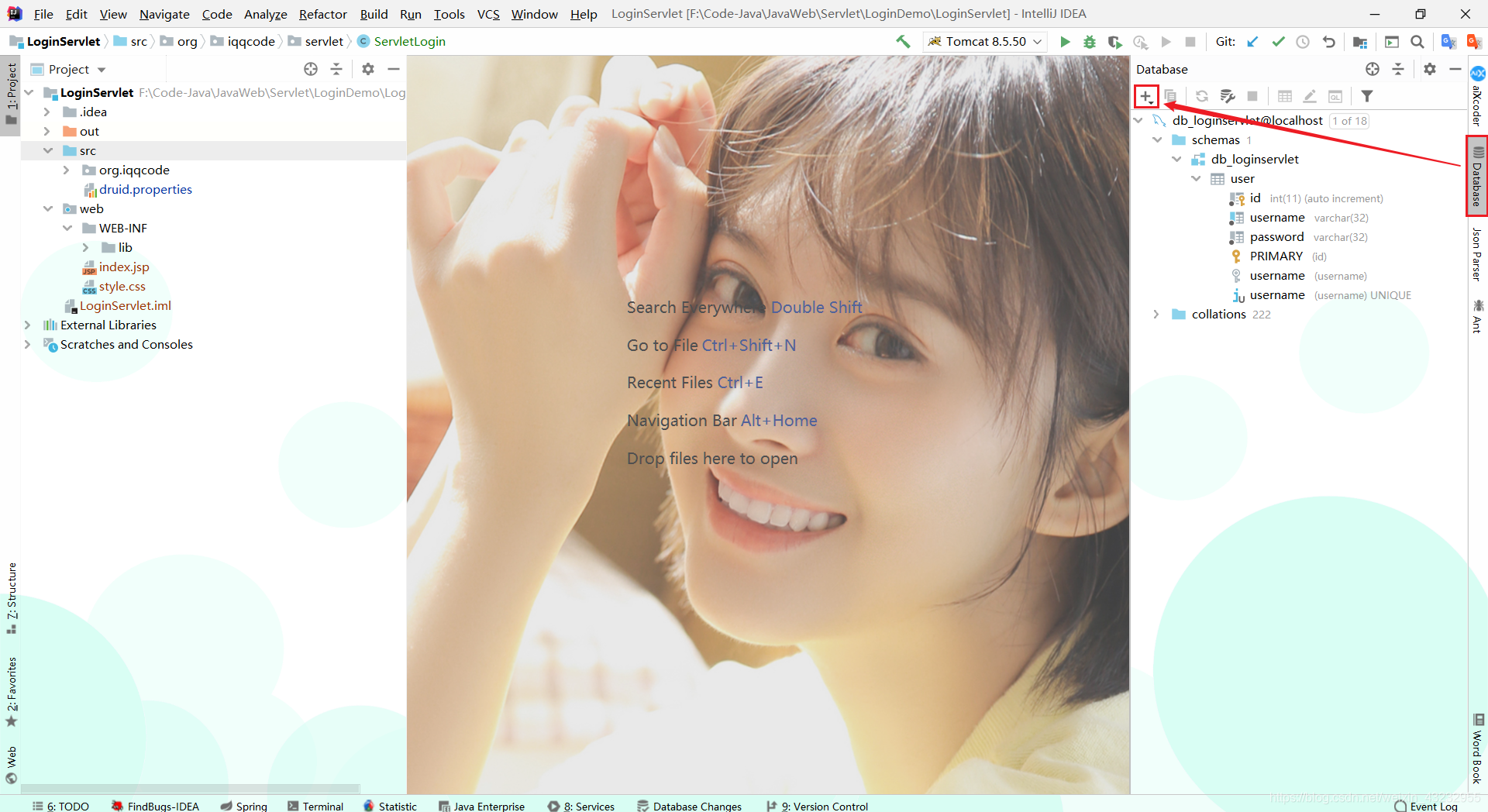

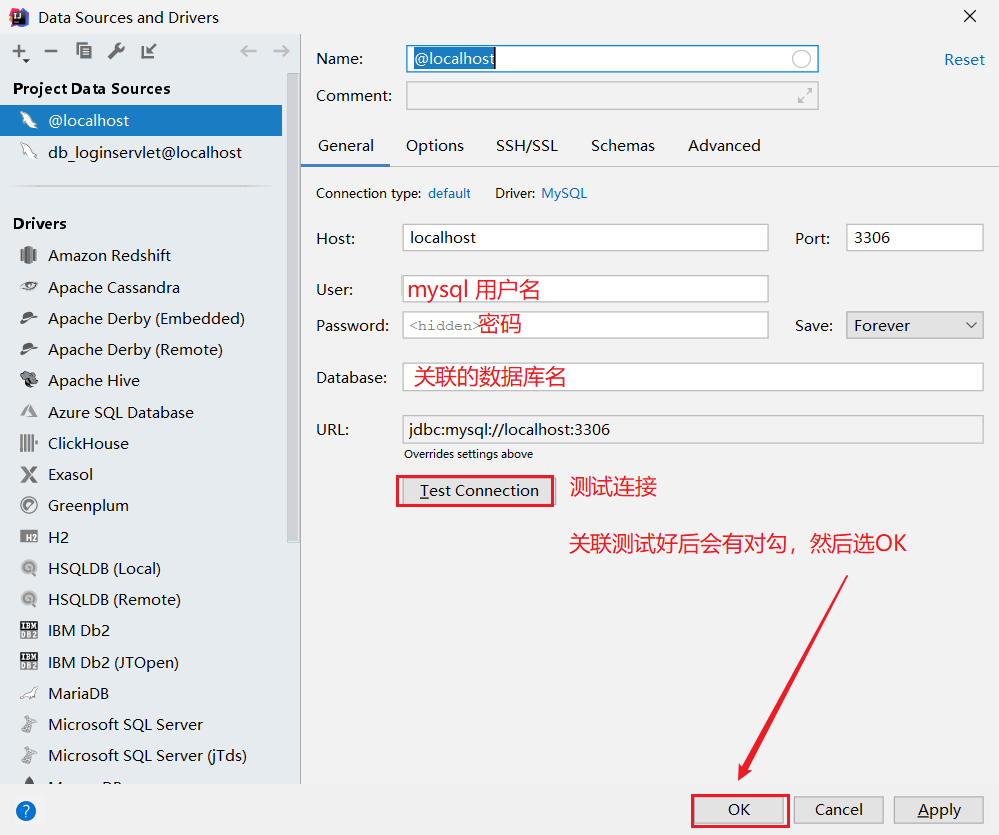

- IDEA关联数据库表,选择MySQL

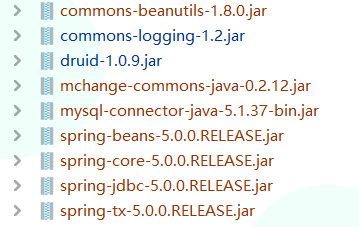

- 导入jar包 链接:https://pan.baidu.com/s/1LhJRBs8BSNGL9ZdvU72bUQ (opens new window) 提取码:b1o5

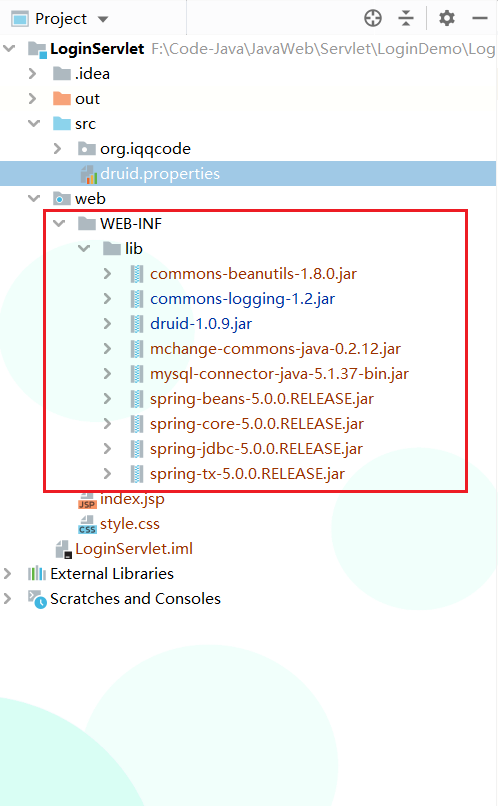

新建文件夹,将这些jar包放到 WEB-INF下的lib中

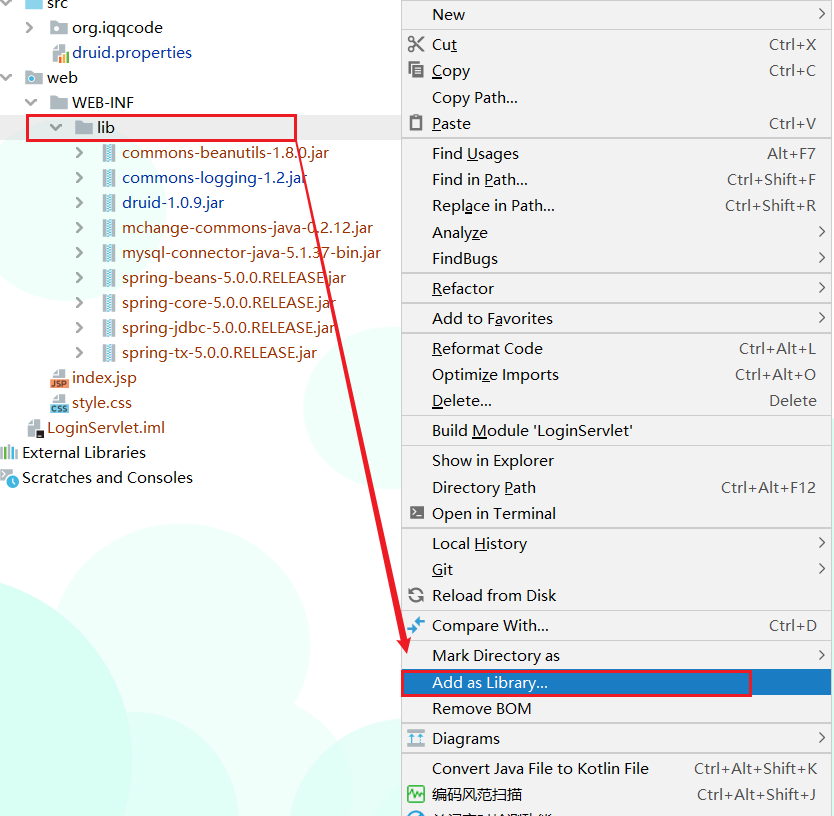

- 将jar包添加到项目中

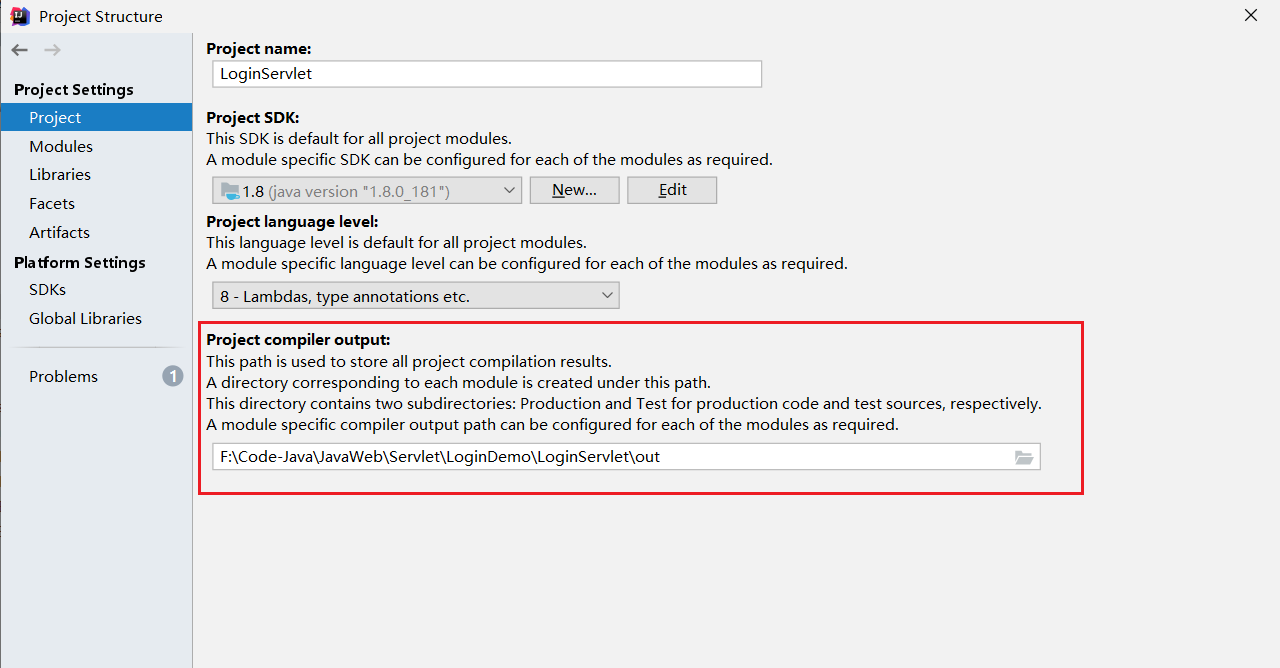

选中lib,右击Add as Library 选择添加到模块中 将编译后的class文件放到文件夹中,路径为当前项目位置的out目录
没有out文件夹的在项目中新建一个即可,不然编译运行时会报错! Druid连接池
桌面新建文件名为druid.properties
,放到src下

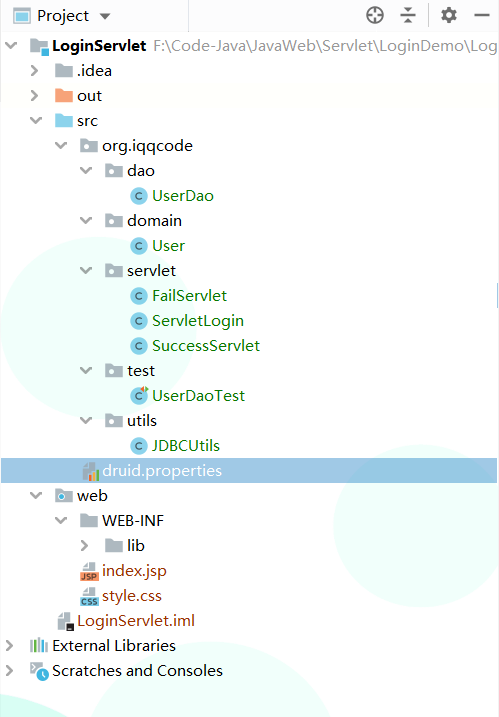

【项目目录】
druid.properties
driverClassName=com.mysql.jdbc.Driver
url=jdbc:mysql://127.0.0.1:3306/db_loginservlet
username=root
password=1234
initialSize=5
maxActive=10
maxWait=3000
maxIdle=6
minIdle=3
2
3
4
5
6
7
8
9
url=jdbc:mysql://127.0.0.1:3306/数据库名
# 3.创建用户实体类User
在domain
包下创建User
package org.iqqcode.domain;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 09:05
* @Description:用户实体类
*/
public class User {
private int id;
private String username;
private String password;
public int getId() {
return id;
}
public void setId(int id) {
this.id = id;
}
public String getUsername() {
return username;
}
public void setUsername(String username) {
this.username = username;
}
public String getPassword() {
return password;
}
public void setPassword(String password) {
this.password = password;
}
@Override
public String toString() {
return "User{" +
"id=" + id +
", username='" + username + '\'' +
", password='" + password + '\'' +
'}';
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
# 4.创建UserDao类,提供login方法
在dao
下新建UserDao,操纵数据库中User类的表
package org.iqqcode.dao;
import org.iqqcode.domain.User;
import org.iqqcode.utils.JDBCUtils;
import org.springframework.dao.DataAccessException;
import org.springframework.jdbc.core.BeanPropertyRowMapper;
import org.springframework.jdbc.core.JdbcTemplate;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 10:27
* @Description:操纵数据库中User类的表
*/
public class UserDao {
//声明JDBCTemplate对象共用
private JdbcTemplate template = new JdbcTemplate(JDBCUtils.getDataSource());
/**
* 登录方法
* @param loginUser 只有用户名,密码
* @return user 包含用户全部数据
*/
public User login(User loginUser) {
try {
//1.编写sql
String sql = "select * from user where username = ? and password = ?";
//2.调用quary方法
User user = template.queryForObject(sql,new BeanPropertyRowMapper<User>(User.class),
loginUser.getUsername(),loginUser.getPassword());
return user;
} catch (DataAccessException e) {
e.printStackTrace();//记录日志
return null;
}
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
# 5.编写工具类JDBCUtils
在utils
包下创建JDBCUtils,JDBC工具类,使用druid连接池
package org.iqqcode.utils;
import com.alibaba.druid.pool.DruidDataSourceFactory;
import javax.sql.DataSource;
import java.io.IOException;
import java.io.InputStream;
import java.sql.Connection;
import java.sql.SQLException;
import java.util.Properties;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 10:31
* @Description:JDBC工具类,使用druid连接池
*/
public class JDBCUtils {
private static DataSource ds;
static {
try {
//1.加载配置文件
Properties props = new Properties();
//使用ClassLoader加载配置文件来获取字节输入流
InputStream inputStream = JDBCUtils.class.getClassLoader().getResourceAsStream("druid.properties");
props.load(inputStream);
//2.初始化连接池对象
ds = DruidDataSourceFactory.createDataSource(props);
} catch (IOException e) {
e.printStackTrace();
} catch (Exception e) {
e.printStackTrace();
}
}
/**
* 获取连接池对象
* @return
*/
public static DataSource getDataSource() {
return ds;
}
/**
* 获取Connection对象
* @return
* @throws SQLException
*/
public static Connection getConnection() throws SQLException {
return ds.getConnection();
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
# 6.单元测试UserDao功能
在test
包下新建UserDaoTest,junit测试UserDao查询数据表功能
package org.iqqcode.test;
import org.iqqcode.dao.UserDao;
import org.iqqcode.domain.User;
import org.junit.Test;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 11:34
* @Description:
*/
public class UserDaoTest {
@Test
public void testLogin() {
User useLogin = new User();
useLogin.setUsername("admin");
useLogin.setPassword("admin");
UserDao dao = new UserDao();
User user = dao.login(useLogin);
System.out.println(user);
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
测试结果
# 7.编写ServletLogin类
在servlet
包下创建ServletLogin
package org.iqqcode.servlet;
import org.apache.commons.beanutils.BeanUtils;
import org.iqqcode.dao.UserDao;
import org.iqqcode.domain.User;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.lang.reflect.InvocationTargetException;
import java.util.Map;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 15:16
* @Description:
*/
@WebServlet("/ServletLogin")
public class ServletLogin extends HttpServlet {
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws javax.servlet.ServletException, IOException {
//1.设置编码
request.setCharacterEncoding("UTF-8");
/*
//2.获取单个请求参数
String username = request.getParameter("username");
String password = request.getParameter("password");
//3.封装user对象
User loginUser = new User();
loginUser.setUsername(username);
loginUser.setPassword(password);
*/
//2.获取所有请求参数
Map<String,String[]> map = request.getParameterMap();
//3.封装user对象
User loginUser = new User();
//3.1使用BeanUtils封装
try {
BeanUtils.populate(loginUser,map);
} catch (IllegalAccessException e) {
e.printStackTrace();
} catch (InvocationTargetException e) {
e.printStackTrace();
}
//4.调用UserDao的login方法
UserDao dao = new UserDao();
User user = dao.login(loginUser);
//5.判断user
if (user == null) {
//登录失败
request.getRequestDispatcher("failServlet").forward(request, response);
}else {
//登陆成功
//存储数据
request.setAttribute("user",user);
//转发
request.getRequestDispatcher("successServlet").forward(request, response);
}
}
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws javax.servlet.ServletException, IOException {
this.doPost(request, response);
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
FailServlet
package org.iqqcode.servlet;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 16:36
* @Description:
*/
@WebServlet("/failServlet")
public class FailServlet extends HttpServlet {
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//页面设置编码
response.setContentType("text/html;charset=UTF-8");
//输出
response.getWriter().write("登陆失败...用户名或密码错误");
}
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
this.doPost(request, response);
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
SuccessServlet
package org.iqqcode.servlet;
import org.iqqcode.domain.User;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @Author: Mr.Q
* @Date: 2020-02-09 16:36
* @Description:
*/
@WebServlet("/successServlet")
public class SuccessServlet extends HttpServlet {
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//页面设置编码
response.setContentType("text/html;charset=UTF-8");
//获取request域中共享的user对象
User user= (User)request.getAttribute("user");
if(user != null) {
//输出
response.getWriter().write("登陆成功!" + user.getUsername() +"欢迎您!");
}
}
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
this.doPost(request, response);
}
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
# 8.登录页面
index中form表单的action路径的写法
虚拟目录+Servlet的资源路径

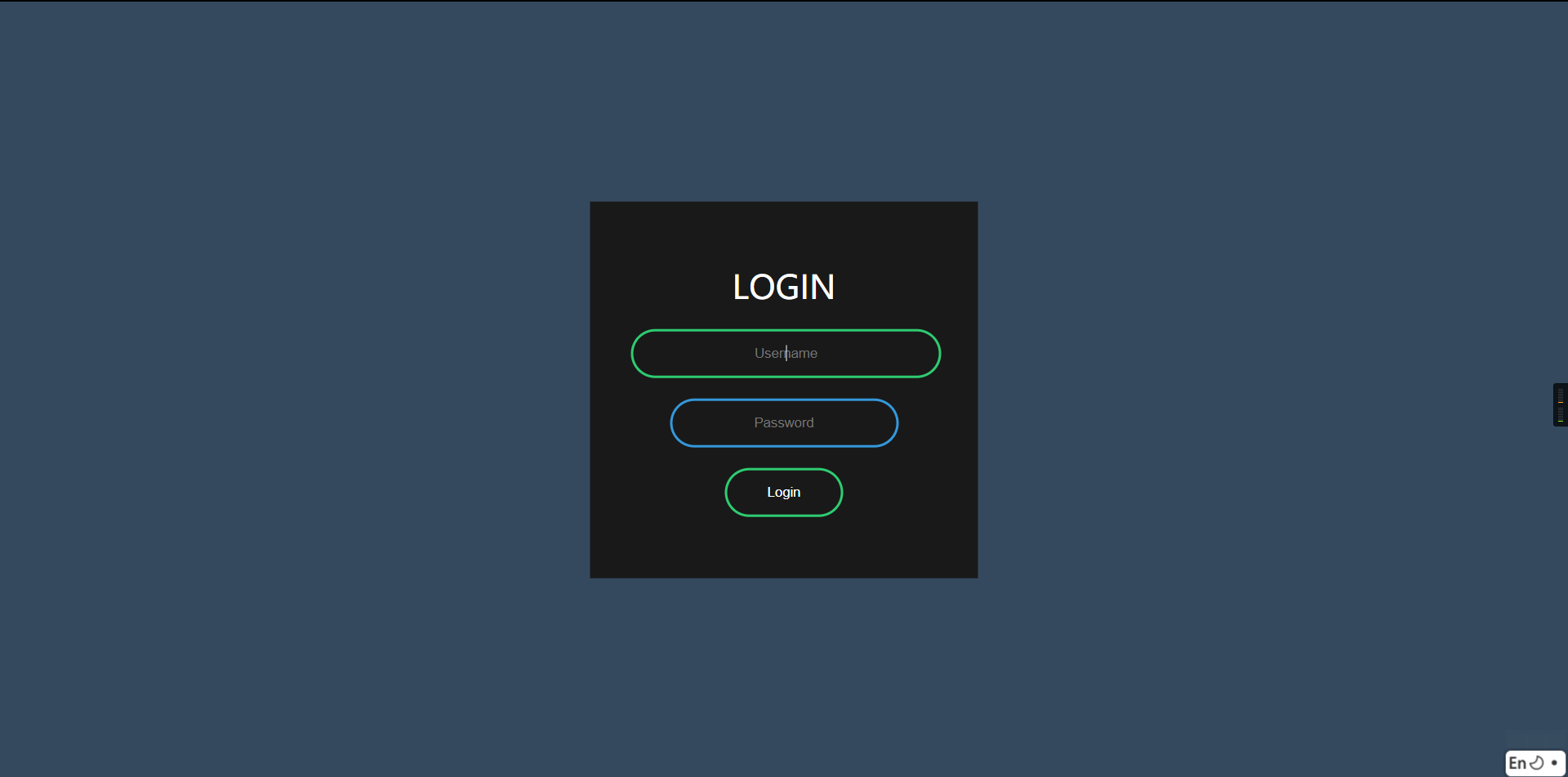

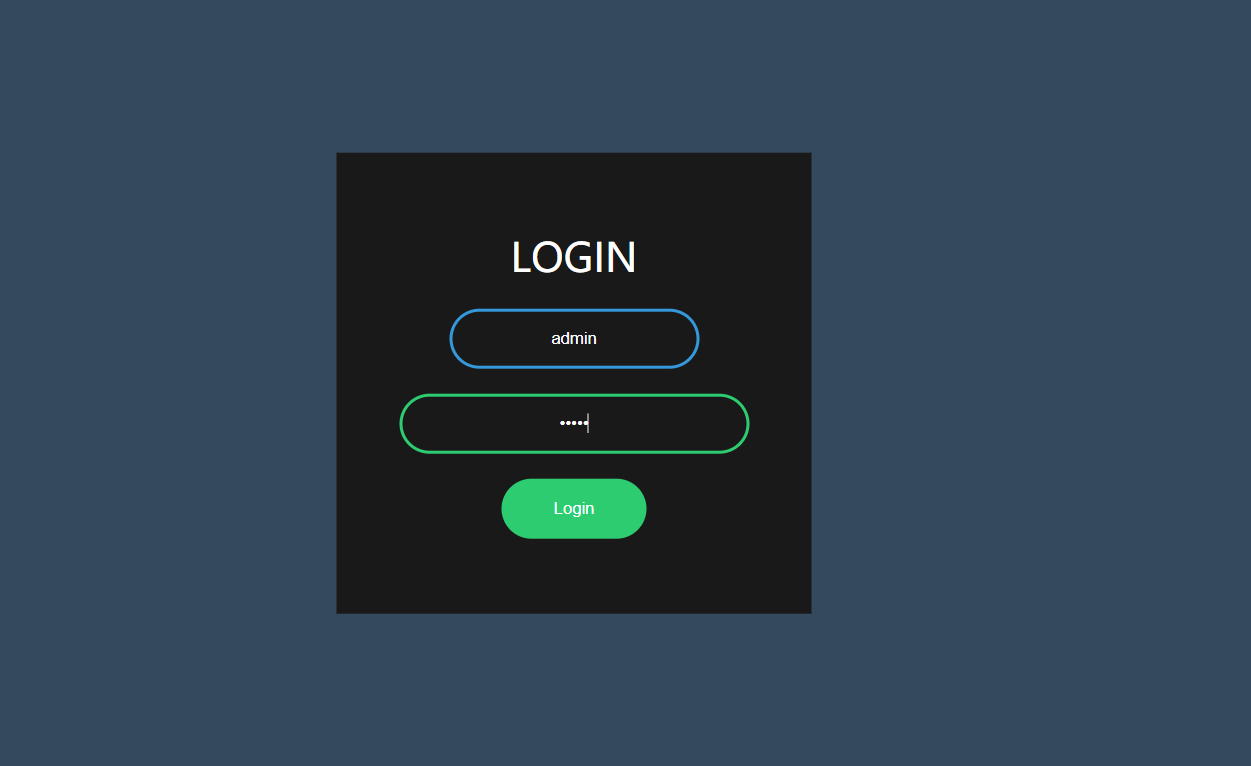

【页面预览】 index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Login</title>
<link rel="stylesheet" href="style.css">
</head>
<body>
<form class="box" action="/LoginServletDemo/ServletLogin" method="POST">
<h1>Login</h1>
<input type="text" name="username" placeholder="Username">
<input type="password" name="password" placeholder="Password">
<input type="submit" name="" value="Login">
</form>
</body>
</html>
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
style.css
body{
margin: 0;
padding: 0;
font-family: sans-serif;
background: #34495e;
}
.box{
width: 300px;
padding: 40px;
position: absolute;
top: 50%;
left: 50%;
transform: translate(-50%,-50%);
background: #191919;
text-align: center;
}
.box h1{
color: white;
text-transform: uppercase;
font-weight: 500;
}
.box input[type = "text"],.box input[type = "password"]{
border: 0;
background: none;
display: block;
margin: 20px auto;
text-align: center;
border: 2px solid #3498db;
padding: 14px 10px;
width: 200px;
outline: none;
color: white;
border-radius: 24px;
transition: 0.25s;
}
.box input[type = "text"]:focus,.box input[type = "password"]:focus{
width: 280px;
border-color: #2ecc71;
}
.box input[type = "submit"]{
border: 0;
background: none;
display: block;
margin: 20px auto;
text-align: center;
border: 2px solid #2ecc71;
padding: 14px 40px;
outline: none;
color: white;
border-radius: 24px;
transition: 0.25s;
cursor: pointer;
}
.box input[type="submit"]:hover{
background: #2ecc71;
}
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
【登录测试】
# Bug修改
我真是个憨憨,找错找了一天,Druid数据池老报错,原来是导入jar包导错了!
好啦,到此Servlet登录案例的Demo完成了。虽然实现的功能比较简单,算是对Servlet知识点的练习!
